Standards Compliance
▪ TIA/EIA-568-C.3
▪ TIA/EIA-604
▪ RoHS, REACH SvHC compliant

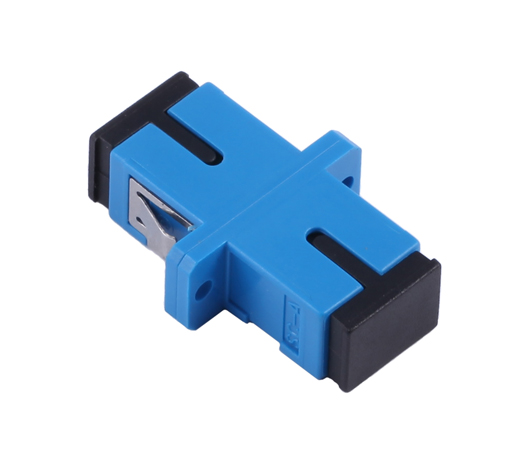

Features
▪ Made of high quality Zirconia ceramic sleeves
▪ 100% tested on optical performance (Insertion Loss & Return Loss)
▪ End-face geometry requirement complies to Telcordia GR-326-CORE
▪ For end-to-end fiber cable connectivity
▪ Available in singlemode and multimode, including APC and various colours
▪ Female to female & male to female adaptors available
▪ Hybrid, Shuttered and Metal adaptors available
▪ Coloured for easy indentification
Environmental & Mechanical Data
| Operating Temperature | -40 to +75º C |
| Storage Temperature: | -40 to +85º C |
| Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
| High temperature (61300-2-18) | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat (61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
Optical Performance Data
| Item | Single mode | Multimode |
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G |
| Insert Loss/connector (single Fiber) | 0.2dB Max. (0.15dB typ.) | 0.2dB Max. (0.15dB typ.) |
| Return Loss | ≥45 dB | ≥50 dB | ≥60 dB | N.A |
| Insert Loss/MTRJ Connector | 0.5dB Max. (0.45dB typ.) | 0.5dB Max. (0.45dB typ.) |
| Pull Strength | ≥98N | ≥98N |
Design & Materials
| Adaptor material | High Impart flame retardant thermo plastic UL94-V0 |
| Split Sleeve Material | Zirconia ceramic |
| Spring Plate | Stainless steel |
| Capillary diameter tolerance (Single Mode) | 126 ± 0.5μm |
| Capillary diameter tolerance (Multimode) | 127± 0.5μm |
| Operating Temperature | -40 to +75º C |
| Storage Temperature: | -40 to +85º C |
| Mating durability | >500 Mating Cycles |
Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： XX-AA-BCDECL
Ordering Guide
| XX | Adaptor Type Code | AD, HAD, MAD |
| AA | Connector Type A | FP,SP,SA,LP |
| B | Mode | SM=Singlemode, MM=Multimode, OM3=Multimode 10G |
| C | Fiber Count | SX=Simplex, DX=Duplex, QD=Quad |
| D | Adaptor Shape | N=no ear type |
| E | Material | M=Metal, P=plastic |
| CL | Color(CL) | Blue for Singlemode PC Standard, Beige for Multimode Standard,
Aqua for OM3/OM4 Standard and Green for Singlemode APC.
(Metal Structure Unsuited) |
Adaptor Type Code
| AD | Standard Adaptor (Female to Female Adaptor) |
| HAD | Hybrid Adaptor (Female to Female Adaptor) |
| MAD | Male To Female Adaptor |
| BAD | Bare Adaptor |
| SAD | Shuttered Adaptor |
Connector Type Code
| FP | FC/PC,FC/UPC | FA | FC/APC |
| SP | SC/PC, SC/UPC | SA | SC/APC |
| TP | ST/PC, ST/UPC | TA | ST/APC |
| LP | LC/PC, LC/UPC | LA | LC/APC |
| MU | MU | MT | MTRJ |
| DN | DIN | E2 | E2000 |
Color Code
Ordering Sample
| Part Number | Description |

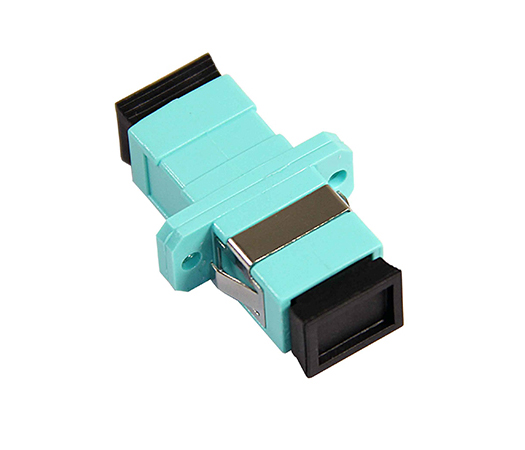

| AD-SP-OM3SXPAQ | SC/PC Multimode OM3 Simplex Plastic Fiber Optic Adaptor, Aqua. |

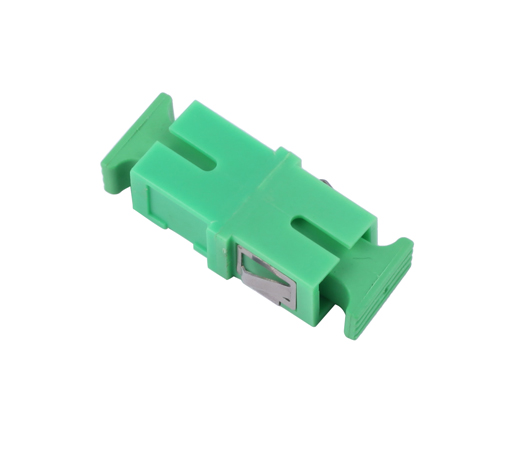

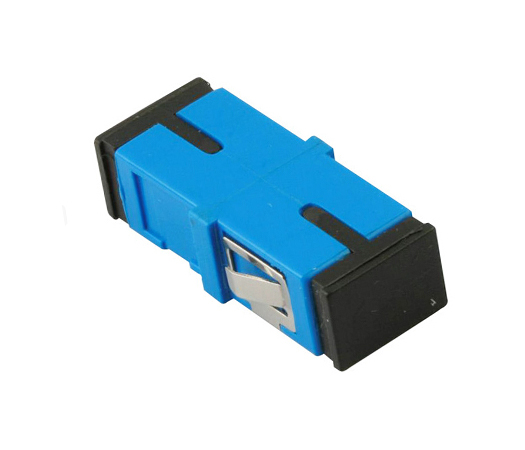

| AD-SA-SMSXNPGR | SC/APC Singlemode Simplex Plastic Fiber Optic Adaptor, No Ear Type, Green. |

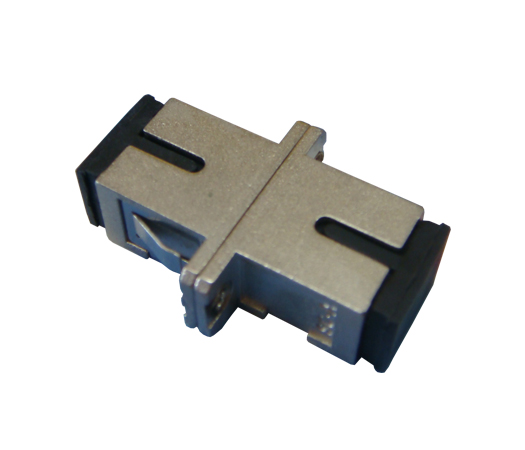

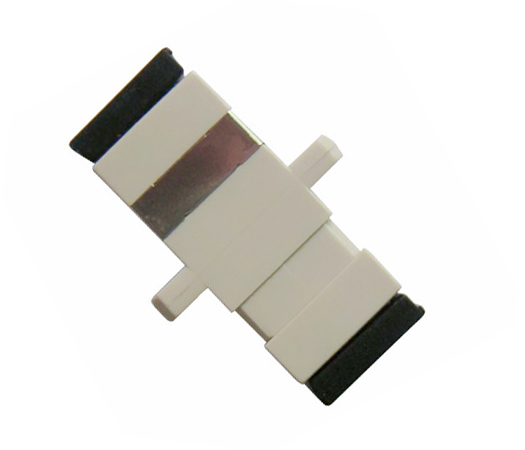

| AD-SP-MMSXM | SC/PC Multimode Simplex Metal Fiber Optic Adaptor. |
