Standards Compliance
.UL-V0 ﬂammability rating
.TIA/EIA-568-C.3 (Optical Fiber Cabling Components Standard)
.ANSI/TIA/EIA 455B (Standard Test Procedure for Standard Fiber Optic Fibers, Cables, Connecting & Terminating Devices, and Other Components)
.IPC-8497-1 (Cleaning Methods & Contamination Assessment for Optical Assembly)
.Complies with IEC 61754-2 and TIA 604-2
.RoHS, REACH SvHC compliant

Features
.High quality ceramic components and Material
.End-face geometry requirement complies to Telcordia GR-326-CORE
.100% tested on optical performance (Insertion Loss & Return Loss)
.Simplex, duplex and higher core densities
.900 micron, 2mm, 3mm cable applications

Design & Materials

Connector Ferrule	Ceramic
Alignment Sleeve	Ceramic
Connector Body	UL 94V-0 rated Thermoplastic to meet standard ﬂammability ratings
Crimp Insert/Crimp Tube	Nickel-Plated Brass/Thermoplastic Elastomer Polymer
Dust Cap	Nylon or PVC
Strain Relief Boot	Flame retardant (UL-Rated 94-V0) polymer
Connector Style	SC, FC, ST, LC, MTRJ,
Polish	PC, UPC, APC
Capillary Diameter Tolerance	126 ± 0.5μm(Single Mode), 127 ± 0.5μm (Multimode)
Ferrule Diameter	2.5 ± 0.001mm(FC,SC,ST),1.25± 0.001mm (LC)

Environmental & Mechanical Data

Operating Temperature	-40 to +85º C
Storage Temperature	-40 to +85º C
Temperature Cycling (61300-2-18)	-40 to +75º C, 40 cycles=0.2dB change
High Temperature (61300-2-18)	70˚c for 96Hrs, <0.4dB change
Damp Heat(61300-2-19)	40º C at 93%RH for 96 Hrs, <0.4dB change
Vibration-Mated Pair (61300-2-1)	10-55Hz, 1.5mm P to P <0.2dB change
Mating Durability (61300-2-2)	500 Mating Cycles, clean every 25, <0.2dB change

Optical Performance Data

Item	Single mode			Multimode
	PC	UPC	APC	62.5/125	50/125	50/125 10G
Insert Loss/connector (single Fiber)	0.3dB Max. (0.2dB typ.)			0.3dB Max. (0.2dB typ.)
Return Loss	≥45 dB	≥50 dB	≥60 dB	N.A
Insert Loss/MTRJ Connector	0.5dB Max. (0.45dB typ.)			0.5dB Max. (0.45dB typ.)
Pull Strength	≥98N			≥98N

Specifications

Ferrule Diameter	2.5mm
Coupling Type	Bayonet fitting
2mm or 3mm Boot Color	Red/Black/Yellow
900μm Boot Color	Red/Black/Yellow
Shell Connector versions available for	2mm, 3mm Cable, 900μm Buffered Fiber
Shell Tensile Strength Cable retention	>50N for 2 mm boot versions
Shell Tensile Strength Cable retention	>98N for 3mm & 0.9mm

Ordering Information
Using the available configurations amend/create product codes using the formula below.
Part Number： SCN-AA-BB-CD

Ordering Guide

AA	BB	C	D
Connector Type	Connector Boots diameter	Fiber count	Mode
FP,SP,SA,LP	20=2.0mm 30=3.0mm 09=0.9mm	SX=Simplex DX=Duplex	SM=Singlemode PC MM=Multimode PC APC=Singlemode APC

Connector Type Code

FP	FC/PC, FC/UPC	FA	FC/APC	MU	MU
SP	SC/PC, SC/UPC	SA	SC/APC	MT	MTRJ
TP	ST/PC, ST/UPC	TA	ST/APC	DN	DIN
LP	LC/PC, LC/UPC	LA	LC/APC	E2	E2000

Ordering Sample

Part Number	Description

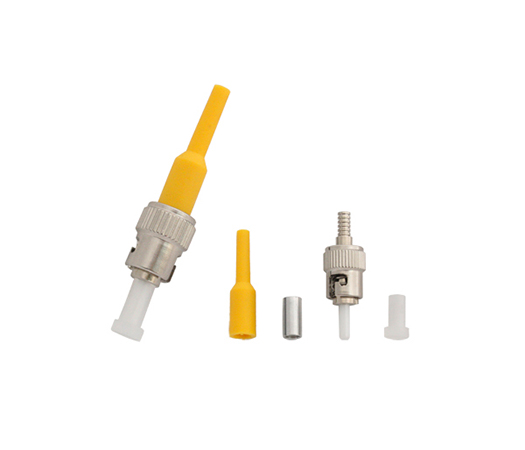

SCN-TP09SXSM	ST/PC 0.9mm Simplex Singlemode Fiber Optic Connector.

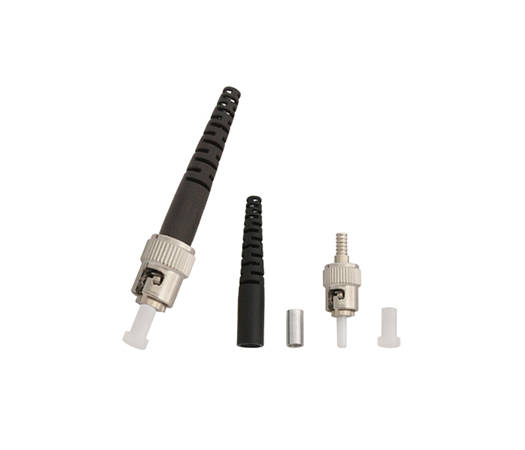

SCN-TP30SXMM	ST/PC 3.0mm Simplex Multimode Fiber Optic Connector.
