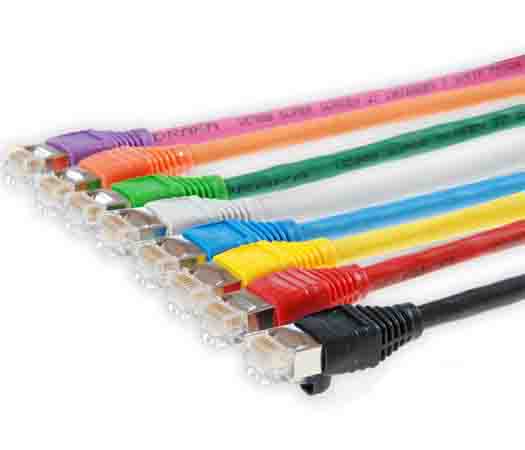

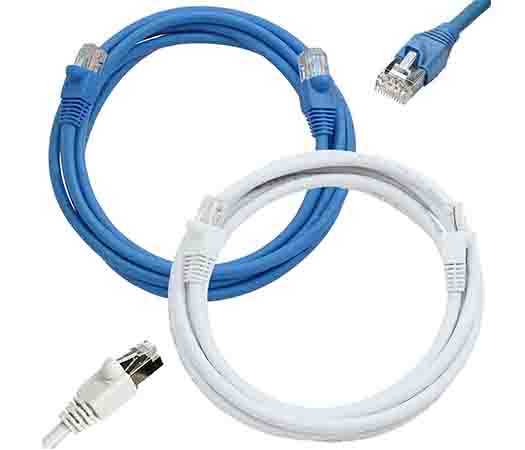

| CAT.6 UTP/FTP Patch Cord | |||||||||
|
|||||||||
Features & Benefits:
. Meets or exceeds industry standards for NEXT and return loss
. Provides enhanced EMC protection and improved alien crosstalk performance
. UTP and FTP versions available
. Twisted pairs are brightly coloured and distinguished at a glance
. Ultra smooth jacket available in LSZH or PVC and in a variety of colours
. Available in custom lengths
| Construction | UTP | FTP |
| Conductor Size (AWG) | 23(Solid bare copper) | |
| Conductor Size: | 0.57mm±0.022mm (D) | |
| Dielectric Material | High Density PE | |
| Insulation Diameter: | 1.43 mm | |
| Rip Cord: | optional | Yes |
| Drain Wire: | N/A | Tinned Copper 0.41mm |
| Screening Material: | N/A | Aluminium foil (100% Coverage) |
| Outer Jacket: | LSZH or PVC | |
| Outer Jacket Thickness | 6.0 mm | 6.2 mm |
| Frequency Range: | 1 - 250 MHz |
| Impedance: | 100 Ω+/-15 |
| Coupling Attenuation: | UTP: 40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz |
| FTP: 55 dB min @ 30-100 MHz 55-20Log(f/100) @100-250 MHz |
|
| Max. DC Resistance : | 73 Ω/km nom. |
| Max. Resistance Unbalance: | 4 % |
| Capacitance: | 5.6nF/100m max. |
| Capacitance Unbalance: | 3.3 pF/m max. |
| Velocity of Propagation: | 69% |
| Propagation Delay Skew: | 35ns/10m max. |
| Dielectric Strength: | 1KV/minute |
| Min. Insulation Resistance : | 5 GΩ•km |
| Max. Tensile Strength - Short Term: | 110 N |
| Min. Bend Radius: | 80 mm |
| Max. Operating Temperature: | +70 °C |
| Min. Operating Temperature: | –20 °C |
| Category | Construction | Sheath Material | Colour | Length |
| Category 6 (CAT6) 6 |
UTP (U/UTP) UTP FTP (F/UTP) FTP |
PVC PVC LSZH LS |
Grey GY Red RD Green GR Blue BL Yellow YE Orange OR White WH Black BK Purple PU Pink PK |
0.3-100m 0.3-100 |
| For Example: PC6-FTP-LS-WH-5; Cat.6 FTP Patch Cord, 5M, LSZH, White. | ||||
|
